Ever since the arrival of Conroe back in 2006, we've only really recommended AMD for its (sometimes incredible) value. Recommending AMD for those looking for absolute performance pretty much ended when the Pentium 4 retired.

AMD is looking to change that with the arrival of its first Fusion APUs. These APUs marry one or more AMD x86 cores with dozens if not hundreds of Radeon "cores" on a single die. While today the APU is little more than a cohabitation of these two computing architectures, the end goal is something far more integrated:

Llano is AMD's second Fusion APU, the first being Zacate which we met earlier this year. Llano shouldn't be all that unfamiliar to you either, the notebook version of the APU launched just two weeks ago. book. If gaming is going to be the most intensive thing you do on your notebook, you may find yourself wanting one based on a Llano APU.

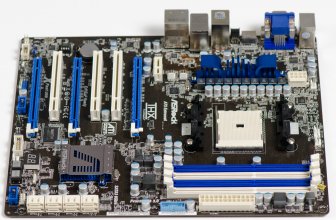

Now it's time to look at Llano on the desktop. We previewed the desktop Llano alongside the mobile version but today we're back with much more detail. This article will focus on the basics: CPU performance, GPU performance and the associated details. Ian has a final review of one of the first desktop Llano motherboards - the ASRock A75 Extreme6 as well as a look at overclocking the new desktop APU. Finally Ganesh's article takes an in-depth look at how Llano works as an HTPC platform.

The APU

Although mobile Llano has to worry about fitting into thin and light notebooks, the desktop version has a lot more breathing room and as a result it comes to us in a pretty traditional package. Motherboard backwards compatibility is thrown out the window as you need pins to get video output from the APU to an on-board VGA/DVI/HDMI header and as a result we have a new platform: Socket-FM1.

Socket-FM1 is a 905-pin ordeal that looks reminiscent of the original Clawhammer CPU:

Despite the socket change, heatsink specifications haven't changed. All existing Socket-AM2/AM2+/AM3/AM3+ heatsinks should work just fine as long as they can handle the rated TDP of the chip you're cooling.

The desktop Llano launch starts small. AMD is only introducing four parts today, two of which will be available later:

Bitcoin 7850

Bitcoin 30-Day

Bitcoin 24/7

Bitcoin 3.24

Bitcoin 360

AMD Llano Desktop Lineup
GPU Total TDP (GPU + CPU) CPU Cores CPU Clock (Base/Turbo) GPU Cores GPU Clock Price
AMD A8-3850 Radeon HD 6550D 100W 4 2.9GHz 400 600MHz $135
